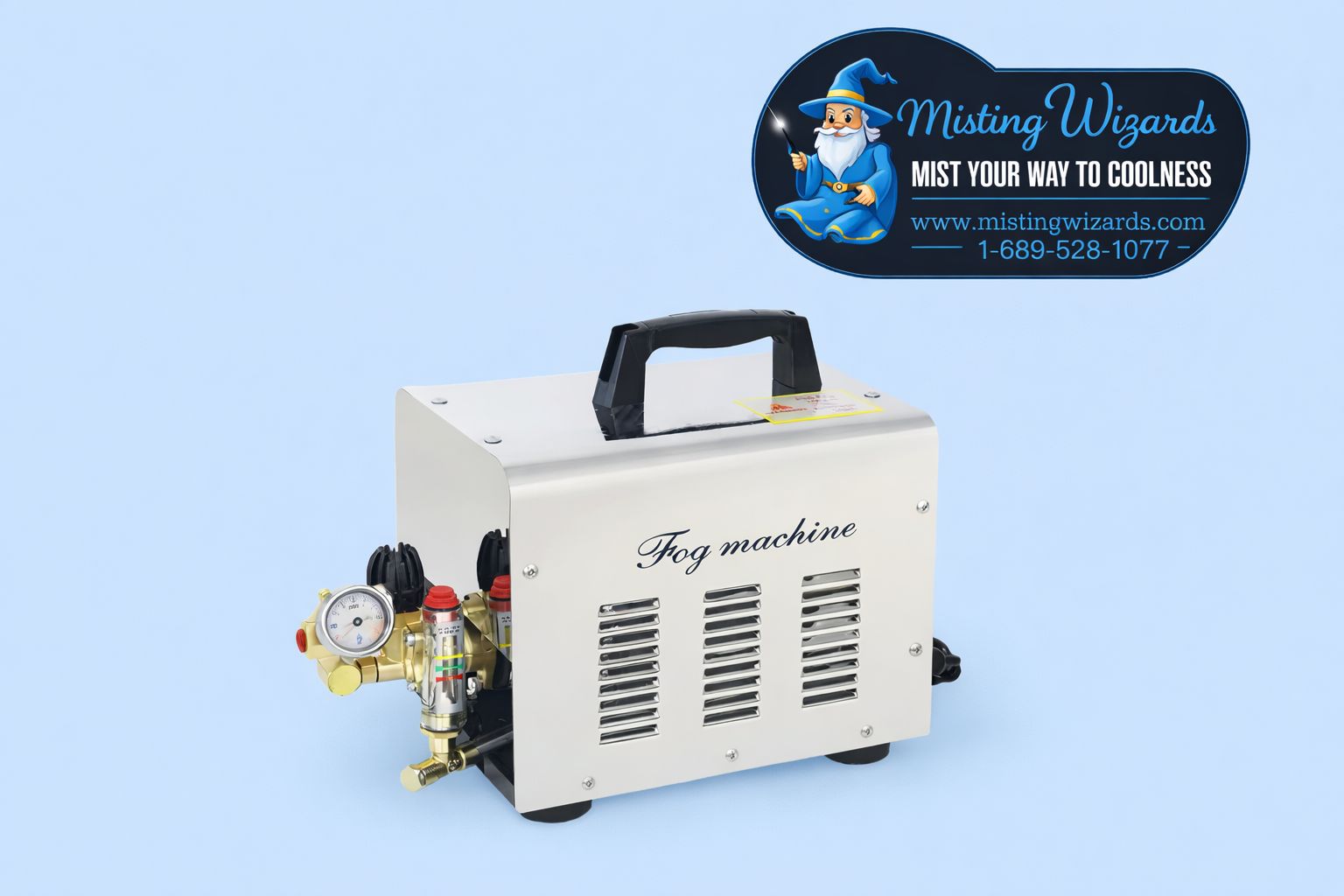

RM-1600 High-Pressure Misting System

Professional Cooling Solution for Outdoor, Commercial & Agricultural Environments

The RM-1600 High-Pressure Misting System by Misting Wizards is a powerful evaporative cooling system designed to deliver professional temperature control in outdoor living spaces, commercial environments, and agricultural facilities. Built with a durable metal enclosure and a high-performance axial pump, this system produces an ultra-fine mist that evaporates instantly, helping reduce surrounding temperatures while maintaining a comfortable and dry atmosphere.

Engineered for reliability and efficiency, the RM-1600 High-Pressure Misting System provides consistent cooling performance across large areas. The integrated digital timer allows precise mist cycle control, while the included high-pressure hose, connectors, and precision nozzles make installation quick and convenient.

Advanced Evaporative Cooling Technology

High-pressure misting systems work by atomizing water into microscopic droplets that evaporate rapidly in the air. This natural evaporative cooling process can reduce ambient temperatures by up to 10°F – 20°F, providing an energy-efficient alternative to traditional air-conditioning systems for outdoor and semi-open spaces.

The RM-1600 High-Pressure Misting System distributes cooling mist evenly across patios, outdoor seating areas, greenhouses, warehouses, and workspaces while maintaining quiet and efficient operation.

Key Features of RM-1600 High-Pressure Misting System

• High-Pressure Axial Pump: Industrial-grade pump designed for powerful mist output and consistent cooling performance.
• Ultra-Fine Mist Technology: Precision nozzles create microscopic droplets that evaporate quickly without excessive moisture.
• Durable Metal Housing: Heavy-duty metal enclosure protects internal components and ensures long-term durability.
• Digital Timer Control: Automated misting intervals for optimized cooling and water efficiency.
• Complete Installation Kit: Includes hose, nozzles, connectors, and fittings for easy system setup.
• Energy Efficient Operation: Provides large area cooling while using minimal electricity.

Ideal Applications

The RM-1600 High-Pressure Misting System is designed for a wide range of cooling applications including:

• Residential patios and outdoor living spaces
• Restaurants and outdoor dining areas
• Greenhouses and plant nurseries
• Agricultural barns and livestock facilities
• Warehouses and industrial workspaces
• Outdoor entertainment venues
• Commercial patios and event spaces

Technical Specifications

Specification	Details
Product Model	CLHP-16005A
Product Type	High-Pressure Misting System
Pump Type	Dual-Plunger Axial Pump
Motor Power	300 Watts
Pump Pressure	60 Bar (860 PSI)
Water Flow Rate	1 Liter / Minute (0.26 GPM)
Voltage	110V / 220V
Frequency	50Hz / 60Hz
Construction	Heavy-Duty Metal Housing
Coverage Area	Up to 100 m² (1,076 sq ft)
Control	Digital Timer

What’s Included in the Package

• 82 ft High-Pressure Nylon Hose (25 m)
• 20 Precision Misting Nozzles
• 21 Quick-Connect Slip-Lock Connectors
• Inline Water Filter
• Connection Fittings
• Operation Manual

Shipping Information

Package Dimensions:

• Length: 18 inches
• Width: 12 inches
• Height: 10 inches

Shipping Weight: Approximately 22 lbs

Each RM-1600 High-Pressure Misting System is carefully packaged in a heavy-duty corrugated shipping carton designed for safe transport and storage.

Why Choose Misting Wizards?

Misting Wizards systems are engineered to deliver professional cooling performance using durable components and advanced misting technology. Whether you need cooling for residential patios, commercial outdoor spaces, or agricultural facilities, the RM-1600 High Pressure Misting System provides reliable and efficient cooling wherever it is installed.

Misting Wizards – Mist Your Way To Coolness.
